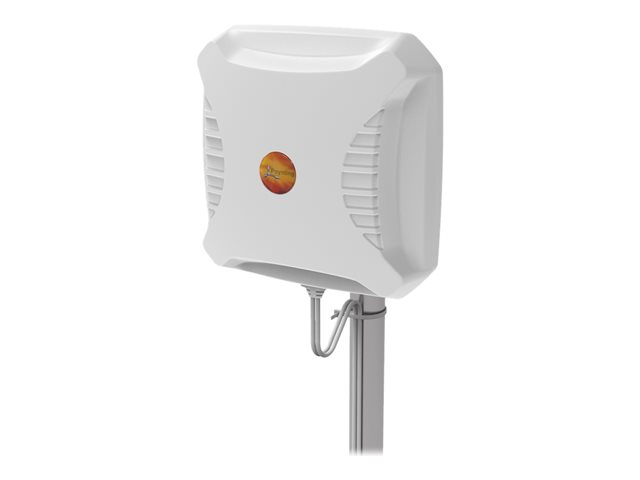

Poynting Antennas XPOL-2-5G - Höger vinkel

Poynting Antennas XPOL-2-5G - Vänster vinkel

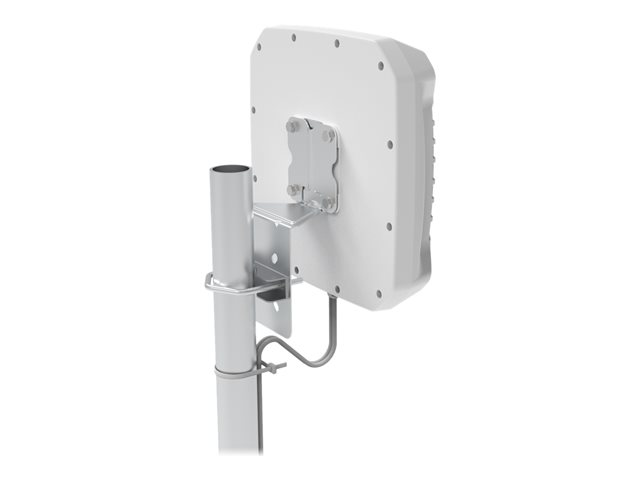

Poynting Antennas XPOL-2-5G - Tillbaka

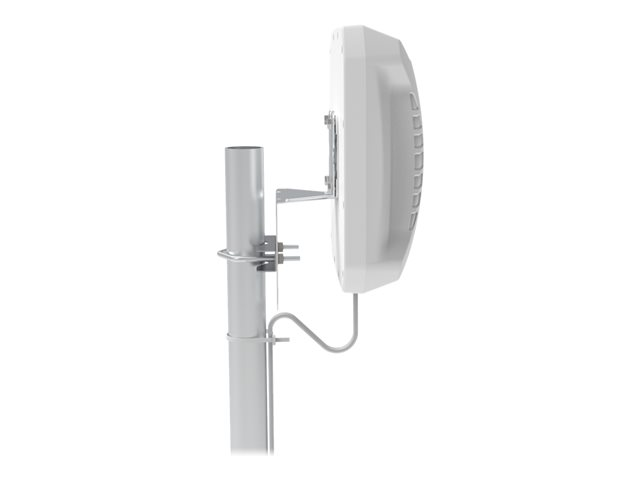

Poynting Antennas XPOL-2-5G - Vänster sida

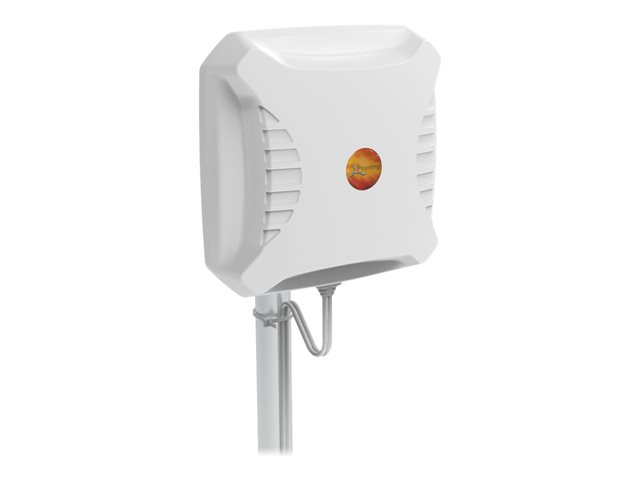

Poynting Antennas XPOL-2-5G

Antenn - cellulär - 10 dBi (för 1710 - 2700 MHz), 9 dBi (för 698 - 960 MHz), 11 dBi (för 3400 - 3800 MHz) - riktnings- - utomhus, kan monteras på vägg, monteras på stång, inomhus - brilliant white, pantone P 179-1 C

22 i lager Förväntad 2025-07-19

Tillverkare Poynting Antennas

Artikelnr A-XPOL-0002-V3-01

UNSPSC 43221706

Logga in för pris

Information
- Advanced metamaterial technology
- Exceptional performance over the main 4G/5G bands
- High gain for the antenna size
- Wideband 2 x 2 MIMO 4G/5G antenna
- Backwards compatible 2G/3G/4G/LTE/5G antenna
- Two cross polarized antennas in one enclosure for optimal LTE performance
- IP65 weather/dust and vandal resistant enclosure
The XPOL-2-5G is Poynting's third generation "V3" of this very popular Cross Polarized (XPOL), cellular band, 2 x 2 MIMO antenna. The antenna enclosure effectively looks the same as the second generation "V2" but has been completely redesigned on the inside. Poynting has used advanced metamaterial technology, making use of Artificial Magnetic Conductors (AMC) and registered/patent pending radiator configuration, which is proving to yield exceptional improvements in bandwidth and gain. Radiation patterns of this antenna are exceptionally well controlled, further adding to the performance of the antenna.
